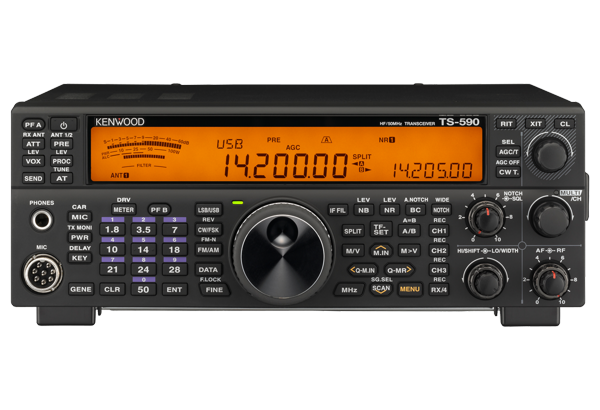

HF/6m Base Station
| Frequency Coverage: Top band - 6 Metres (including 5 MHz by dealer mod.) TX, 30 kHz - 60MHz RX |
| 100 Watts RF Output Power |
| 6kHz, 2.7kHz and 500Hz Roofing Filters |
| 100 Memory Channels, with alpha-tagging |
| 1st-IF Down Conversion (1.8 - 21MHz WARC bands) |
| 32-bit Floating Point DSP |
| Built-In USB and Serial COM Ports |
| Built-In Auto ATU (also covers 5MHz band) |
| Built-In CW Keyer with selectable Mode A/B Keying |
| Two-Colour LCD Display (Amber or Green) |
| 135.7 - 137.8 kHz TX output (1 mW) from low-level "DRV" terminal |
| Sky Command II function with the new Kenwood TH-D72E portable |
Açıklama
| Frequency Coverage: Top band - 6 Metres (including 5 MHz by dealer mod.) TX, 30 kHz - 60MHz RX |
| 100 Watts RF Output Power |
| 6kHz, 2.7kHz and 500Hz Roofing Filters |
| 100 Memory Channels, with alpha-tagging |
| 1st-IF Down Conversion (1.8 - 21MHz WARC bands) |
| 32-bit Floating Point DSP |
| Built-In USB and Serial COM Ports |
| Built-In Auto ATU (also covers 5MHz band) |
| Built-In CW Keyer with selectable Mode A/B Keying |
| Two-Colour LCD Display (Amber or Green) |
| 135.7 - 137.8 kHz TX output (1 mW) from low-level "DRV" terminal |
| Sky Command II function with the new Kenwood TH-D72E portable |
