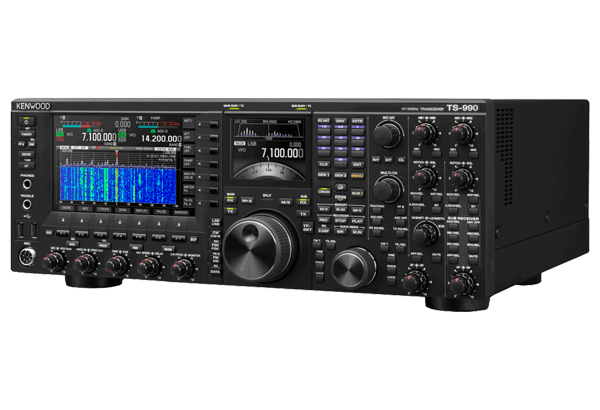

HF/6m Flagship Base Station
| HF/50MHz Flagship Base Station |
| 200 watts output from 50V FET Push-pull PA stage |
| +40dBm Intercept Point RX |
|
Main RX - Down Conversion on all bands 270Hz/500Hz/2.7kHz/6kHz/15kHz Roofing Filters |
|
Sub RX - Down Conversion on 15/20/40/80/160M bands (as TS-590S RX) 500Hz/2.7kHz Roofing Filters |

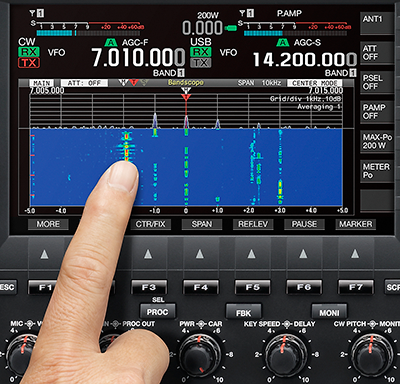

| 2 x TFT Colour Display screens |
| 3 x DSP Processors |
| Built-in RTTY/FSK/PSK/QPSK Decoder/Encoder. |
| 4 x SO-239 Antenna sockets plus RCA jacks for RX-only antenna input and external RX out. "Antenna Name" display function for the 4 SO-239 ports |
|
Connectivity:- 10MHz Ref Clock I/O (BNC), External ATU port, Keyboard In, COM Port (Female 9-pin), Straight Key, Paddle/external Keyer, 2 x USB-A & 1 x USB-B ports, "ACC-2" Data/audio connector, "Remote" linear connector, analogue Meter Jack 3.5 mm, "DRV" low-level LF drive, Optical SP-DIF I/O, 2 x external speaker sockets, DVI-I Dual-link video port, LAN port |
Açıklama
| HF/50MHz Flagship Base Station |
| 200 watts output from 50V FET Push-pull PA stage |
| +40dBm Intercept Point RX |
|
Main RX - Down Conversion on all bands 270Hz/500Hz/2.7kHz/6kHz/15kHz Roofing Filters |
|
Sub RX - Down Conversion on 15/20/40/80/160M bands (as TS-590S RX) 500Hz/2.7kHz Roofing Filters |
| 2 x TFT Colour Display screens |
| 3 x DSP Processors |
| Built-in RTTY/FSK/PSK/QPSK Decoder/Encoder. |
| 4 x SO-239 Antenna sockets plus RCA jacks for RX-only antenna input and external RX out. "Antenna Name" display function for the 4 SO-239 ports |
|
Connectivity:- 10MHz Ref Clock I/O (BNC), External ATU port, Keyboard In, COM Port (Female 9-pin), Straight Key, Paddle/external Keyer, 2 x USB-A & 1 x USB-B ports, "ACC-2" Data/audio connector, "Remote" linear connector, analogue Meter Jack 3.5 mm, "DRV" low-level LF drive, Optical SP-DIF I/O, 2 x external speaker sockets, DVI-I Dual-link video port, LAN port |
